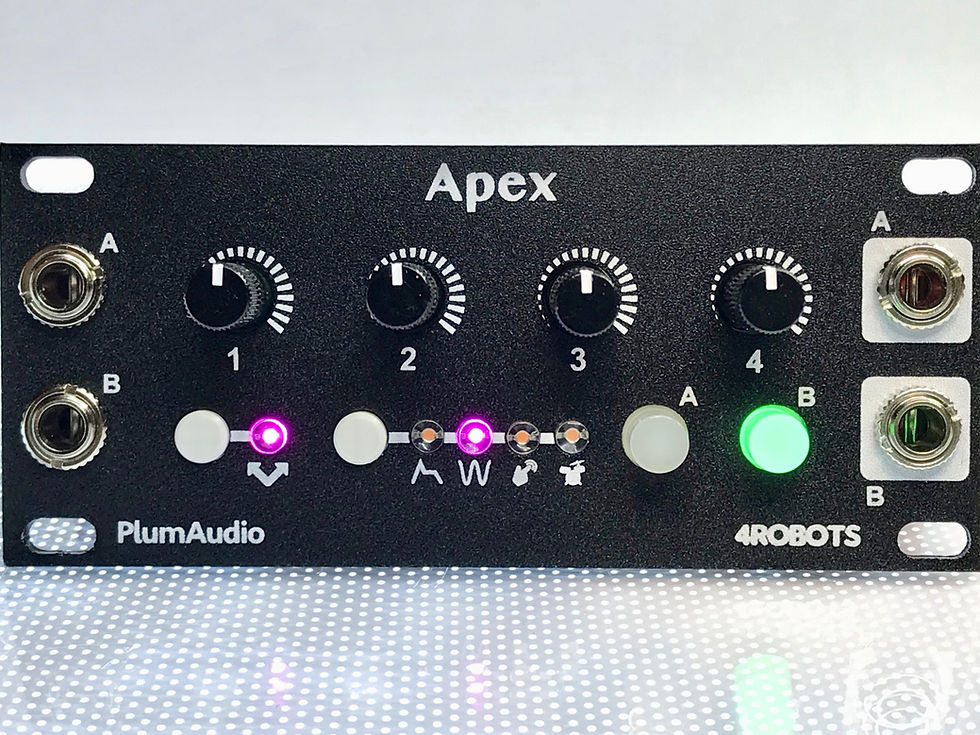

Apex is dual channel multi function module with 23 different modes in a small package of 1u/18hp (Intellijel or PulpLogic 1u format)
Available modes:

  • Envelope
  • Double attack envelope
  • Repeating attack envelope
  • Looping envelope
  • Randomised AD envelope
  • Bouncing ball envelope
  • LFO
  • Tap LFO
  • Frequency-modulated LFO (folded sine FM)
  • Frequency-modulated LFO (random FM
  • Varying wave shape LFO ( folded sine WS mod)
  • Varying wave shape LFO ( random WS mod)
  • Phase-locked loop oscillator
  • Mini-sequencer
  • ModSequencer
  • Pulse Shaper
  • Pulse Randomiser
  • Turing Machine
  • Bytebeats
  • Bass/Snare Drums
  • FM drum Generators
  • Randomised bass and snare drum generators
  • Randomised high hat


Expanders:

Expander connection is available on Apex back and 3 sizes of CV Expanders to choose from makes the ability to modulate Apex parameters.

  • Apex CV: 6hp with only 4 cv inputs (+15$).
  • ApexEx: 12hp with 4 cv inputs and attenuverters to scale and invert cv signals (+49$).
  • ApexEx 3u: 3u/2hp (regular 2hp module) with 4 cv inputs and attenuverters to scale and invert cv signals (+49$).



Panel options:

Apex 4Robots (Intellijel): Silver or Black

Apex CV 6hp (Intellijel): Silver or Black

ApexEx 12hp (Intellijel): Silver or Black

ApexEx 3u: Silver or Black

Apex mk2 (Pulp Logic): Black only

We send expander of the same color selected for the module.

It is possible to order different colors for module and expander, if you want to do so please contact me after order is placed.

Apex

199.00$ Regular Price
184.00$Sale Price
1u Format
Panel Colour
CV Expander
  • Apex:
    1u (Intellijel or Pulp Logic Format)  18hp / 35mm Deep
    +12v 50mA , -12v 12mA, 5v 0mA
    Include Mounting screws and power cable.

    Apex CV Expander:
    1u (Intellijel Format) 6hp / 20mm Deep
    +12v 10mA, -12v 10mA, 5v 0mA
    Input range: 0 - 7.5v

    ApexEx Expander:
    1u (Intellijel Format) 12hp / 35mm Deep
    +12v 15mA, -12v 15mA, 5v 0mA
    Input range: 0 - 7.5v


    ApexEx 3U Expander:
    3u 2hp / 35mm Deep
    +12v 15mA, -12v 15mA, 5v 0mA
    Input range: 0 - 7.5v
